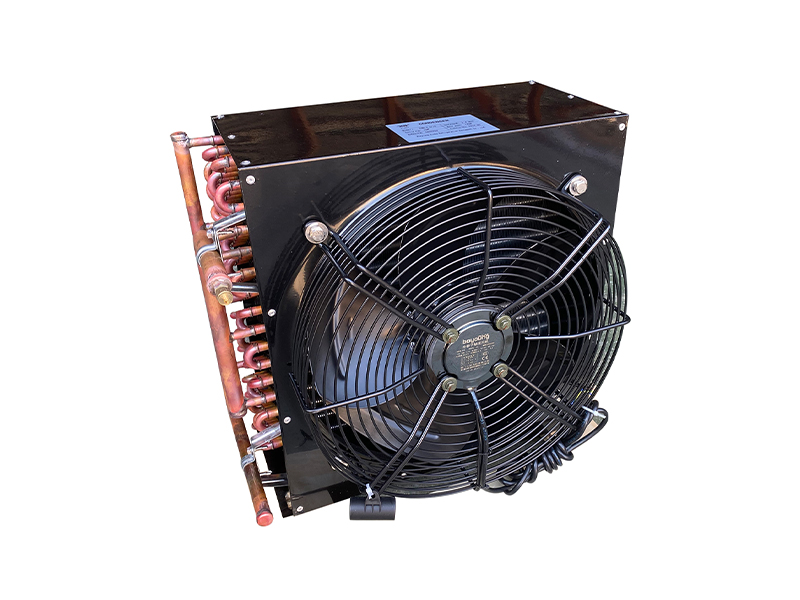

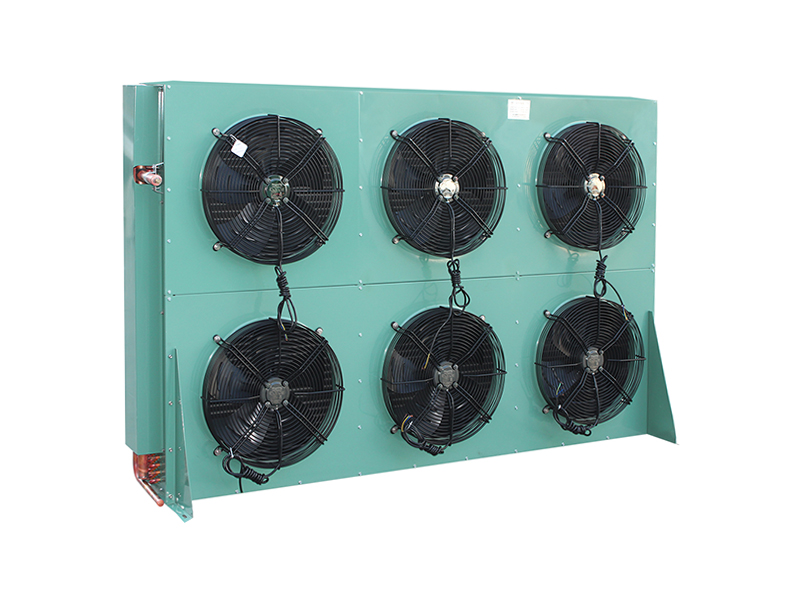

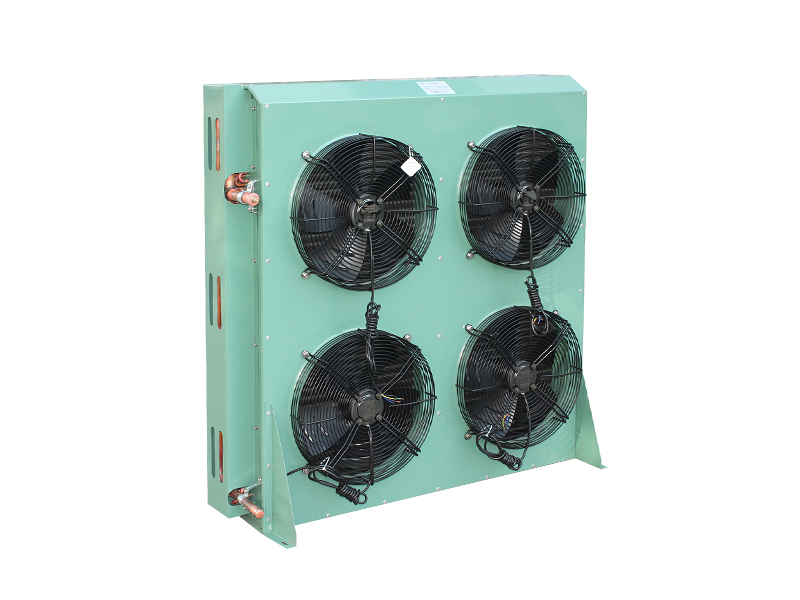

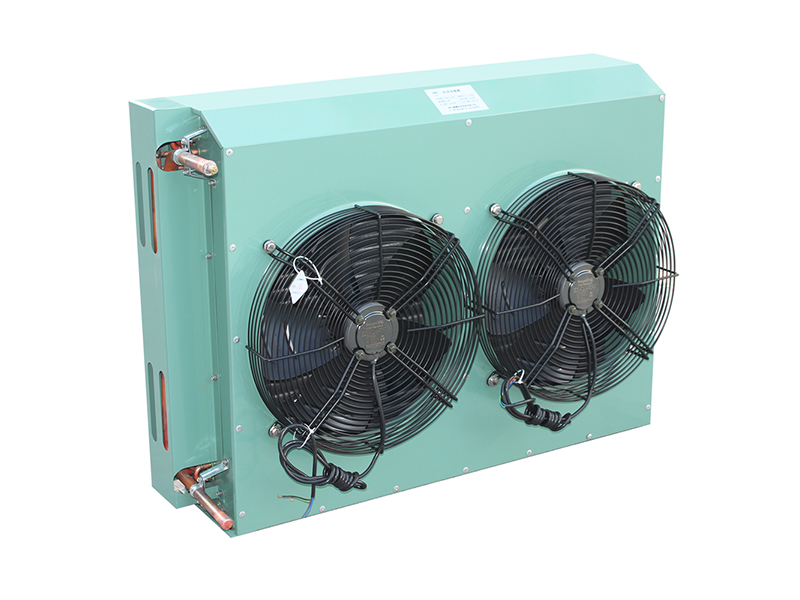

FNH luftkyld kondensor är en viktig komponent i kylutrustning. Det sprider främst värmen som frisätts av kylmediet under kondensationsprocessen genom luftkonvektion och bibehåller den normala driften av kylsystemet. Produkten kan utrustas med olika typer av kondensorfläktar enligt kundkraven för att tillgodose olika värmeavledningsbehov.
Tekniska parametrar för luftkyld kondensor
Modelll | Värmeutbyteskapacitet (KW) | Yta (㎡) | Kopparrör ordförande | Fläkt In i Travhea (φmm) | Till Travhea (Φmm) | Flytande utlopp (Φmm) | ||||
Enntal | Φfan (mm) | Luftvolym (m³/h) | Kraft (W) | Spänning (v) | ||||||
FNH-0.6/2 | 0.6 | 2 | 2x4 | 1 | 200 | 780 | 55 | 220 | 10 | 10 |
FNH-0.9/3 | 0.9 | 3 | 3x4 | 1 | 200 | 780 | 55 | 220 | 10 | 10 |
FNH-1.2/4 | 1.2 | 4 | 3x5 | 1 | 250 | 970 | 80 | 220 | 10 | 10 |
FNH-1.7/6 | 1.7 | 6 | 3x6 | 1 | 300 | 2040 | 1x85 | 220/380 | 10 | 10 |
FNH-2.5/8.0 | 2.5 | 8 | 3x8 | 1 | 300 | 2040 | 1x85 | 220/380 | 10 | 10 |
FNH-4,6/15 | 4.6 | 15 | 4x10 | 1 | 350 | 2700 | 1x180 | 220/380 | 19 | 16 |
FNH-5.4/18 | 5.4 | 18 | 4x10 | 1 | 400 | 4000 | 1x230 | 380 | 19 | 16 |
FNH-6.4/22 | 6.4 | 22 | 5x10 | 1 | 400 | 4000 | 1x230 | 380 | 19 | 16 |
FNH-6.4/22b | 6.4 | 22 | 4x8 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-7.3/28 | 7.3 | 28 | 4x9 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-9,7/33 | 9.7 | 33 | 4x10 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-12.0/41 | 12 | 41 | 4x12 | 2 | 400 | 8000 | 2x230 | 380 | 19 | 16 |
FNH-13,8/50 | 13.8 | 50 | 4x14 | 2 | 400 | 8000 | 2x230 | 380 | 19 | 16 |
FNH-16,7/60 | 16.7 | 58 | 4x14 | 2 | 400 | 8000 | 2x230 | 380 | 22 | 19 |
FNH-20.7/70 | 20.7 | 70 | 4x18 | 4 | 350 | 10800 | 4x180 | 380 | 28 | 22 |
FNH-23.0/80 | 23 | 80 | 4x20 | 4 | 400 | 16000 | 4x230 | 380 | 28 | 22 |
FNH-27.6/100 | 27.6 | 100 | 5x20 | 4 | 400 | 16000 | 4x230 | 380 | 28 | 22 |
FNH-33.3/120 | 33.3 | 120 | 5x24 | 4 | 400 | 16000 | 4x230 | 380 | 32 | 25 |
FNH-39.8/140 | 39.8 | 140 | 5x24 | 4 | 450 | 18800 | 4x280 | 380 | 32 | 25 |
FNH-45.6/160 | 45.6 | 160 | 5x26 | 4 | 450 | 18800 | 4x280 | 380 | 32 | 25 |
FNH-49.9/180 | 49.9 | 180 | 5x26 | 4 | 500 | 26400 | 4x460 | 380 | 32 | 25 |

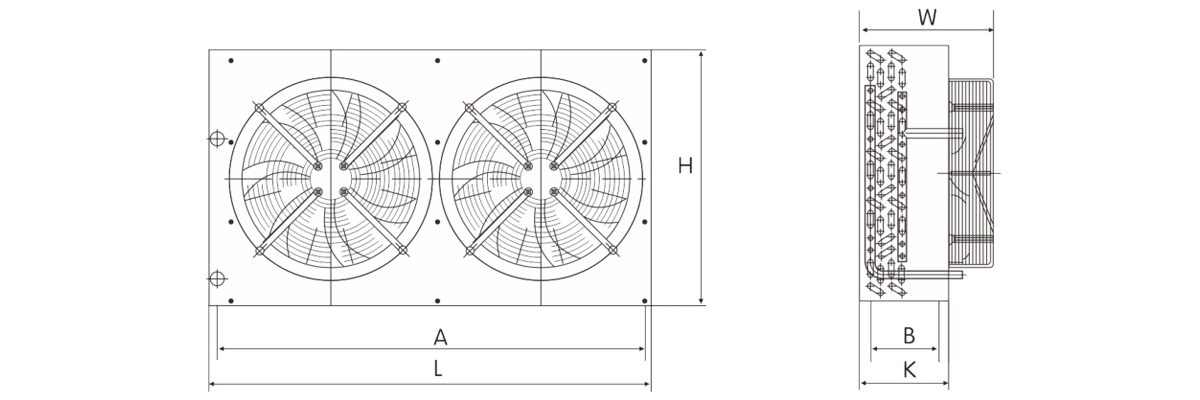

Utseende och installationsdimensioner av luftkyld kondensor
Model | Översleddimensioner | |||||
L | K | H | A | B | W | |
FNH-0.6/2 | 280 | 95 | 240 | 260 | 65 | 140 |
FNH-0.9/3 | 280 | 120 | 240 | 260 | 80 | 165 |
FNH-1.2/4 | 300 | 120 | 290 | 280 | 80 | 175 |
FNH-1.7/6 | 350 | 150 | 340 | 330 | 110 | 235 |
FNH-2.5/8.0 | 450 | 150 | 435 | 420 | 100 | 250 |
FNH-4,6/15 | 485 | 170 | 535 | 455 | 145 | 280 |
FNH-5.4/18 | 520 | 180 | 535 | 490 | 145 | 290 |
FNH-6.4/22 | 600 | 180 | 535 | 570 | 145 | 290 |
FNH-6.4/22b | 875 | 200 | 435 | 845 | 145 | 290 |
FNH-7.3/28 | 875 | 200 | 485 | 845 | 145 | 290 |
FNH-9,7/33 | 935 | 200 | 535 | 905 | 145 | 290 |
FNH-12.0/41 | 935 | 200 | 635 | 905 | 145 | 290 |
FNH-13,8/50 | 935 | 200 | 735 | 905 | 145 | 290 |
FNH-16.2/58 | 1085 | 200 | 735 | 1055 | 145 | 290 |
FNH-20.7/70 | 1085 | 200 | 935 | 1055 | 145 | 290 |
FNH-23.0/80 | 1100 | 220 | 1035 | 1070 | 165 | 310 |
FNH-27.6/100 | 1100 | 220 | 1035 | 1070 | 165 | 310 |
FNH-33.3/120 | 1130 | 220 | 1035 | 1100 | 165 | 310 |
FNH-39.8/140 | 1190 | 220 | 1235 | 1170 | 165 | 320 |
FNH-45.6/160 | 1250 | 220 | 1335 | 1220 | 165 | 320 |
FNH-49.9/180 | 1410 | 220 | 1335 | 1380 | 165 | 320 |
